DG System & Fuel Tank
Power & AC Modules
DATA HALL
Power & AC Modules
Underground Storage Tank (UST)
no data
AIDC

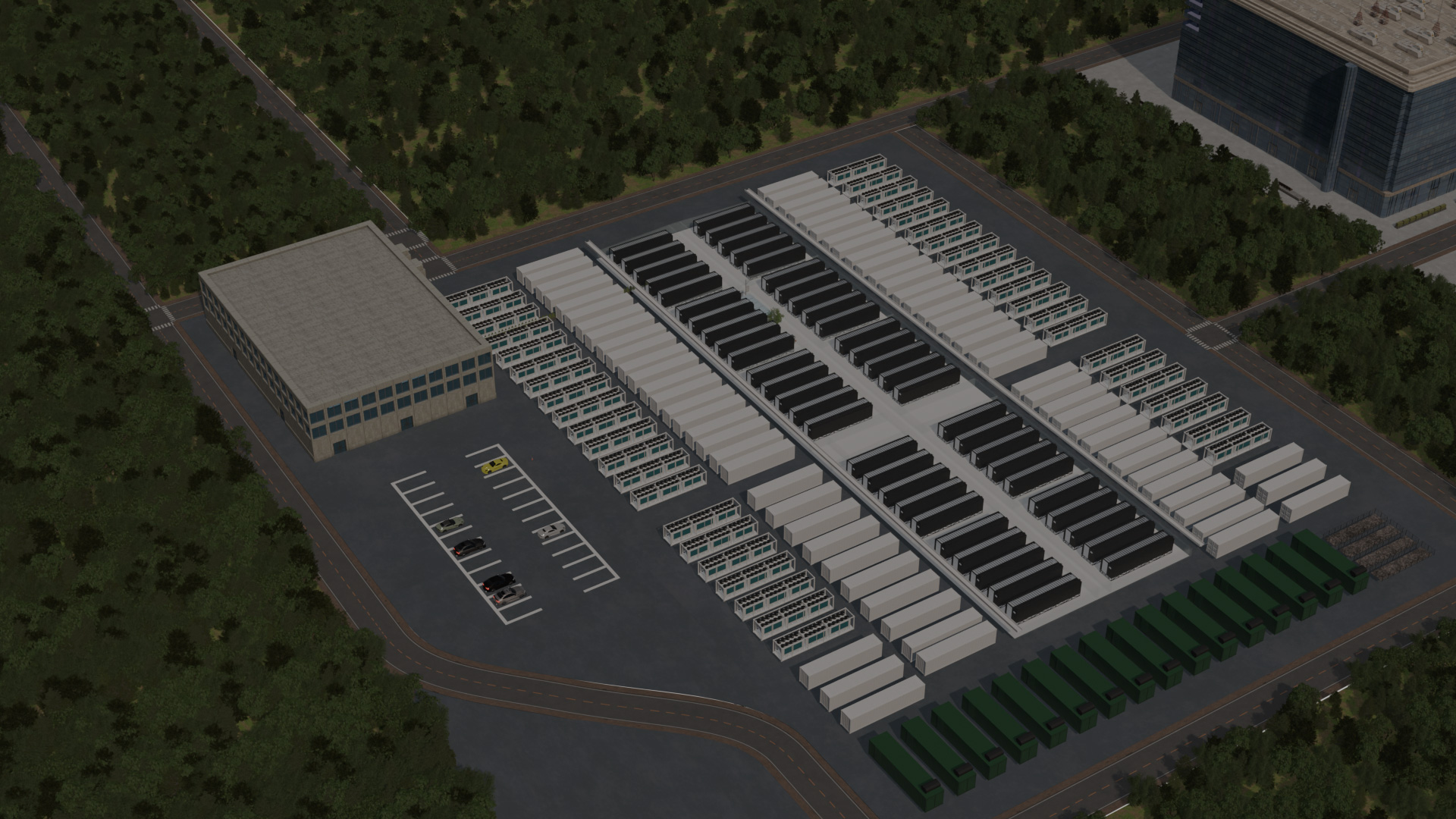

infraFan Wall Modular Cluster Solution
20 / 36MW FAN WALL MODULE Complaint with TIA-942 Tier 3+ standards.
Site Area
70m × 140m (including diesel generators and high-voltage equipment), approximately 2.42 acres
Rack Capacity
20kW × 1000 racks
Support Air cooling server
Deployment Options
50 × 400kW IT FANWALL
250 × 100kW cooling（4+1 × 100kW FANWALL）
Support 55°C ambient temperature outdoor
WUE ≈ 0
Power Modules
2N IT Power Systems (2N UPS + 15min lithium battery )
2N AC Power Systems (1N UPS + 15min lithium battery )
37.5 MW (15+1) MV DG System with 24h Fuel Tank
Fan Wall Modular Cluster Solution
The solution integrates high-density fan-wall and cold-plate liquid cooling, with server exhaust directly routed to the cooling unit. It offers flexible adjustment of air and liquid cooling to meet evolving GPU requirements. Fully prefabricated for rapid deployment, no external water supply needed.
Contact UsSolution Features
Meets simplicity and reliability
[ 01]
Water consumption ≈ 0
No external water source required. The solution eliminates evaporative water loss entirely, enabling deployment in water-scarce regions while complying with strict environmental regulations.
[ 02]
Fully Prefabricated
All equipment, including interconnecting pipes, is prefabricated in factories. This ensures consistent quality, reduces on-site risks, and shortens deployment cycles.
[ 03]
Container & Skid Transport
Designed for standard container and skid-based shipping. Modules arrive ready for rapid assembly, lowering logistics complexity and on-site installation labor.
[ 04]
PUE ≤ 1.25
By combining direct air-to-cooling unit airflow with integrated cold-plate liquid cooling, the system achieves exceptional power usage efficiency, reducing energy overhead and operational carbon footprint.
Turnkey, AI-ready.
We Deliver in 4-6 MONTHS
